Horizontal Metal Lined Medium Duty Slurry Pump SM/200E

Pump Model: SM/200E (10/8E-M)

SM/200E is equivalent to 10/8E-M, a 8” discharge slurry pump designed for medium duty sludge applications. It’s wet-end spare parts are made of high chrome alloy, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532.

Advantage Compared with SH Heavy Duty Slurry Pumps:

1. Lighter in Weight; 2. Smaller in Physical Size; 3. Driven by Smaller Electric Motor.

Material Construction:

Part Description Standard Alternative
Impeller A05 A33, A49
Volute Liner A05 A33, A49
Front Liner A05 A33, A49
Back Liner A05 A33, A49
Split Outter Casings Grey Iron Ductile Iron
Shaft Carbon Steel SS304, SS316
Shaft Sleeve SS304 SS316, Ceramic, Tungstan Carbide
Shaft Seal Expeller Seal Gland Packing, Mechanical Seal
Bearings ZWZ, HRB SKF, Timken, NSK etc.


Mining and Mineral Processing; SAG and AG Mill Discharge Recirculation Duties; Cyclone Feed; Mine Refuse and Tailings;

Industrial Processing; Coal and Power Plant Ash; Sand and Gravel; Mining Duty Abrasive Slurries etc.


Pump Model OEM Model Base Type Bearing Assembly Power (Kw) Flow(m3/h) Head(m) Speed(rpm) Max.Effi.
SM/200E 10/8E-M E EAM005M 120





SM/200F 10/8F-M F F005M 260
SM/200R 10/8R-M R R005M 300

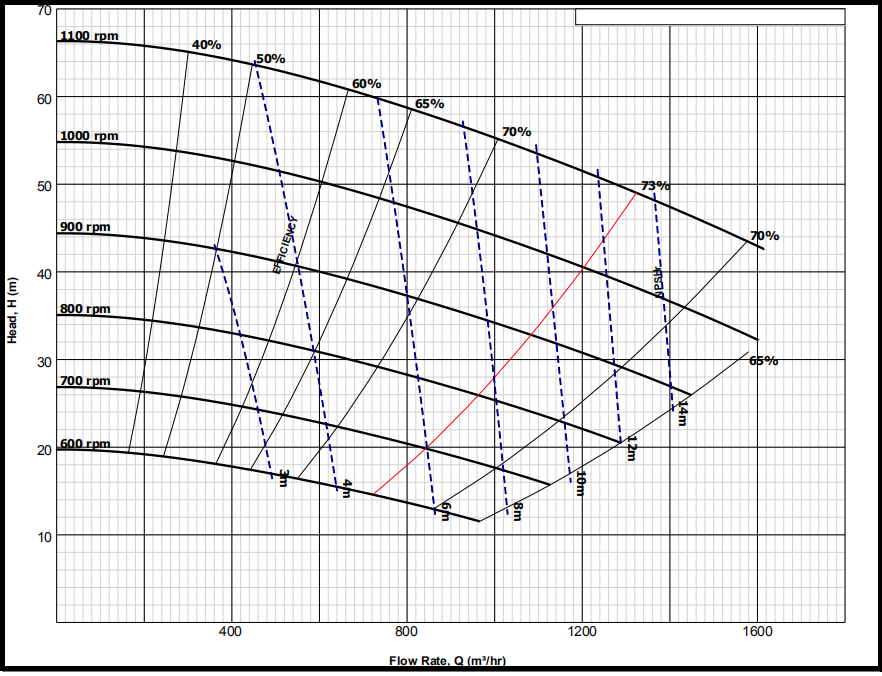

Performance Curve with Standard Impeller, Metal F8147A05:

Performance Curve
