Vertical Tank Froth Pump SF/50QV
Vertical Tank Froth Pumps Model: SF/50QV (2QV/AF)
Vertical Tank Froth Pumps SF series have been designed to increase the pumpability of frothy slurry. The principle of operation is similar to that of hydrocyclone separation.
Vertical Tank Froth Pumps are supplied with parts in wear resistant high chrome iron alloy, with a nominal hardness of 58-65HRC.
The SF froth pump is ideal for all applications involving handling of air entrained slurries, such as flotation froth in base metal concentrators, phosphate and apatite washing plants and calcium carbonate upgrading plants. The pump can also be used as a mixing and distribution unit, where dry powder has to be mixed with water.
Specifications:
|
Pump |
Allowable |
Material |
Clear Water Performance |
Diameter |
||||
|
Capacity Q |
Head |
Speed |
Max.Eff. |
Suction |
Discharge |
|||
|
Impeller |
m3/h |
|||||||
|
SF/50QV |
15 |
Metal |
7.6-42.8 |
6-29.5 |
800-1800 |
45 |
100 |
50 |
|
SF/75QV |
18.5 |
23-77.4 |
5-28 |
700-1500 |
55 |
150 |
75 |
|
|
SF/100RV |
37 |
33-187.2 |
5-28 |
500-1050 |
55 |
150 |
100 |
|
|
SF/150SV |
75 |
80-393 |
5-25 |
250-680 |
55 |
200 |
150 |
|
|
SF/200SV |
110 |
126-575 |
5.5-25.5 |
350-650 |
55 |
250 |
200 |
|

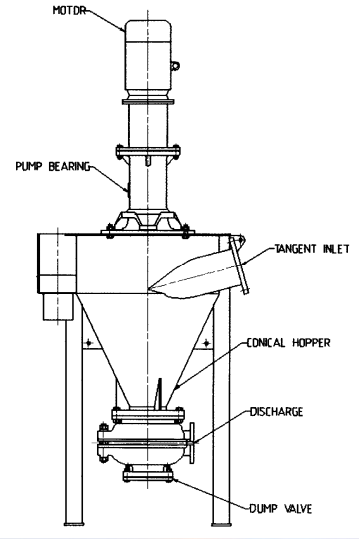

Construction:
